| สถานที่กำเนิด: | เซินเจิ้นประเทศจีน |
| ชื่อแบรนด์: | Jnicon |
| ได้รับการรับรอง: | UL,TUV,CE,ROHS,CQC |
| หมายเลขรุ่น: | ม12 |
| จำนวนสั่งซื้อขั้นต่ำ: | 100 (ตัวอย่าง 10 คู่) |
|---|---|
| ราคา: | negotiable |
| รายละเอียดการบรรจุ: | 1.ถุงพลาสติก 2.กล่อง 3.ตามความต้องการของลูกค้า |
| เวลาการส่งมอบ: | 3-5 วันทำการ |
| เงื่อนไขการชำระเงิน: | L/C, D/A, D/P, T/T, เวสเทิร์นยูเนี่ยน, MoneyGram |
| สามารถในการผลิต: | 10,000/วัน |
| ระดับกันน้ำ: | IP67 กันน้ำ | ประเภทตัวเชื่อมต่อ: | ขั้วต่อแบบโอเวอร์โมลด์ |
|---|---|---|---|
| คุณสมบัติ: | ขั้วต่อดาบปลายปืน | ช่วงสายเคเบิล: | 20-16AWG (สูงสุด 9.0 มม.) |
| เน้น: | M12 PA66 waterproof wire connector,low current quick lock connector,10A molded waterproof connector |
||

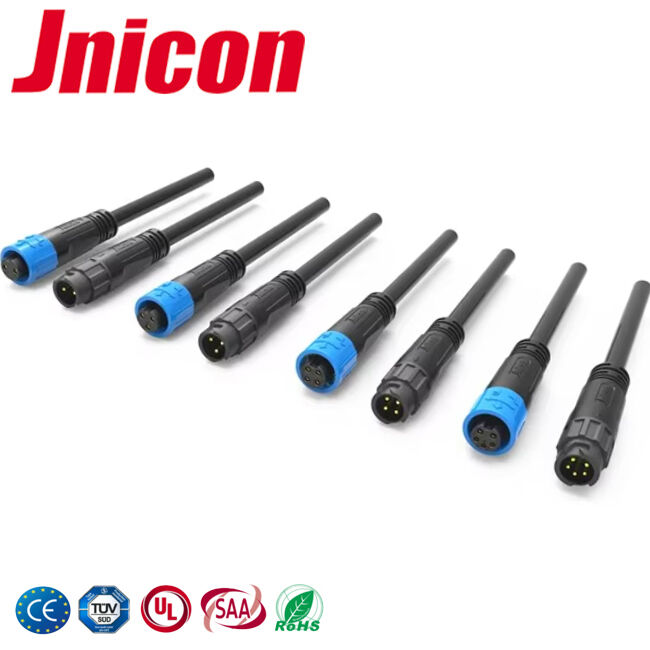

M12 Bayonet IP67 Waterproof Connector Overmolded With Male And Female
Features
M12 bayonet waterproof connector uses advanced connection method , more easy and simple for your connection to any applications no matter indoor or outdoor, cable length could be customized per your requirements, IP67 protection level makes your applications to be reliable condition.
Basic information
| Connecting mode: | Bayonet locking waterproof connector |
| Core number: | 2 cores,3 cores,4 cores,5 cores |
| Gender : | Male and female |
| Connector color: | Black |
Easy connection, convenient install, DIY tools, and no need to pinch-off cable electrical plastic sets, just unscrew the ends of waterproof connector, connect the wire correctly: N for Neutral wire, G for Ground wire, L for live wire.
Technical specification
| Waterproof level: | IP67 |
| Cable specification: | 20AWG-16AWG |
| Cable diameter range: | 9mm |
| Connector type: | Overmolded connector with cable |
| Rated current (A): | 10A |
| Operating voltage (AC.V.rms): | 500V |
Great suitable for industrial power connection, LED fixtures, Telecommunication, Marin, grating, external wiring, CCTV, factory automation control, other places need waterproof power extension use.
| Application industries: | ||
| Stage equipment | The smart grid | LED lighting |
| Medical equipment | Battery charging | Automation |
| Solar energy equipment | Ship equipment | Agriculture |
| Landscape lights | Marine | Fishing system |
Material:
| Shell and insulated parts: | High performance engineering plastics |
| Contact pin: | Copper alloy(gold-plated) |
| Spring: | Stainless steel |
| Sealing: |
Silica gel |
![]()
![]()
